Sea-Dog Illuminating Contura Marine Rocker Switches
Ships: In 1 Business Day
Sea-Dog Illuminating Contura Rocker Switches
Stamped Brass/Injection Molded Nylon/Polycarbonate

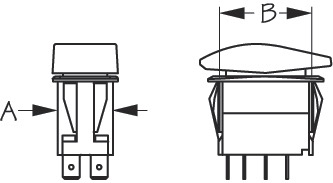

| Display | Circuit | Action | Terminals | Amps | Volts | A | B |
|---|---|---|---|---|---|---|---|
| 420211-1 (4202111) | SPST | On/Off | 3 Blades | 20 | 12 | 13/16" | 1-7/16" |
| 420212-1 (4202121) | SPST | Mom. On/Off | 3 Blades | 20 | 12 | 13/16" | 1-7/16" |
| 420213-1 (4202131) | SPDT | On/Off/On | 4 Blades | 20 | 12 | 13/16" | 1-7/16" |
| 420214-1 (4202141) | SPDT | Mom. On/Off/Mom. On | 4 Blades | 20 | 12 | 13/16" | 1-7/16" |
| 420218-1 (4202181) | DPDT | On/Off/On | 7 Blades | 20 | 12 | 13/16" | 1-7/16" |
| 420219-1 (4202191) | DPDT | Mom. On/Off/Mom. On | 7 Blades | 20 | 12 | 13/16" | 1-7/16" |
Illuminated Contura Rocker Switches are vibration, shock, thermoshock, moisture, and salt spray resistant. Temperature range from -40°C to +85°C. UL1500 / ISO8846 ignition protection for marine products. Switch displays a red light when in the on position. Constructed of injection molded nylon and stamped brass with silver tin oxide contacts. 20A @ 12VDC. IP66 rating (for front panel components only).
