Mercruiser 'r' Drive, gimble housing to ram trim lines

[bikepainter]

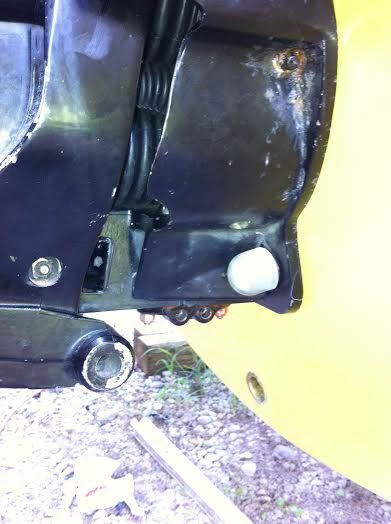

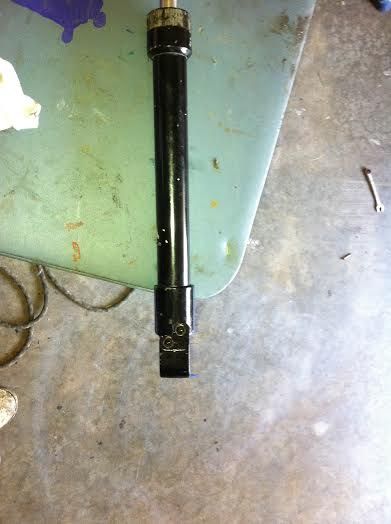

Im finally ready to reinstall my outdrive. I took pics of nearly everything as I took it off. I realized I didnt get pics of the exterior trim lines from the gimble housing to the trim rams. Im not sure which are up and down connections. Ive attached pics of a ram and the gimble housing and would be grateful if someone could tell me which goes where. Thanks in advance for any advice.



[Fishermark]

Don't know if this helps or not... but here is a picture I took of a project I worked on a few years ago with a similar setup:



[Fishermark]

Here's a diagram that I believe works with your unit as well?
