Ready to call 911

S

skip44820

Petty Officer 2nd Class
Joined
Dec 13, 2020
Messages
174
I got this 1983 35 hp 2 stroke Evinrude I bought with no spark and after 2 weeks and lots of new parts STILL NO SPARK, Everything under flywheel new, new power pack, new coils and wires and checked small 1/2 in. fuse. Ready to kill the neighbors cat. Im looking at rectifier wires and where they go. Im confused there. Thinkin somebody moved them. I got a photo but can't figure out how to put here for u to see. Would somebody please help this old man?

R

racerone

Supreme Mariner
Joined
Dec 28, 2013
Messages
38,525
Have you done any trouble shooting or just spending money on parts that are not needed ??----Factory parts or something else.----The rectifier does not make spark.----I would have the battery load tested.----I would take the starter motor apart for inspection and ohm test on armature.----No beer tokens spent to do those steps.

S

saltchuckmatt

Commander
Joined
Jul 19, 2019
Messages
2,811

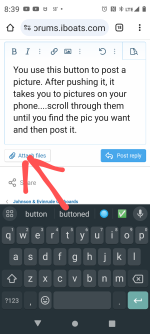

You use this button to post a picture. After pushing it, it takes you to pictures on your phone....scroll through them until you find the pic you want and then post it.


Attachments

  • Screenshot_20231207-203923~2.png
    225.5 KB · Views: 0
S

skip44820

Petty Officer 2nd Class
Joined
Dec 13, 2020
Messages
174
skip44820 said:
I got this 1983 35 hp 2 stroke Evinrude I bought with no spark and after 2 weeks and lots of new parts STILL NO SPARK, Everything under flywheel new, new power pack, new coils and wires and checked small 1/2 in. fuse. Ready to kill the neighbors cat. Im looking at rectifier wires and where they go. Im confused there. Thinkin somebody moved them. I got a photo but can't figure out how to put here for u to see. Would somebody please help this old man?
Click to expand...

S

skip44820

Petty Officer 2nd Class
Joined
Dec 13, 2020
Messages
174
ive got starter off now i have to figure how to test it. can somebody please post a picture what wires go where , there is a block with 4 posts for wires, them r what i need help with THANK YOU

C

Crosbyman

Vice Admiral
Joined
Nov 5, 2006
Messages
5,688

btw when you did have it mounted on... did it turn fast and spin the FW ?

what 4 wire block "there is a block with 4 posts for wires" are you referrering to ?? are you referring to the "terminal block" in the picture below ??

looks like the engine has a 3 phase rectifier. each yellow supply is 1/3 of the FW generated AC. Each phase is 120 degrees apart making up a 360 degree . ( a full AC sine wave has 360 degrees) each yellow gets rectified out has DC to give you 12v to "chargeback" the battery via the post on the solenoid where an extra feed is fused to run things like accessories , choke and solenoid's inner winding during START.

3 Yellows on the block can be mixed with no effect since each one will be rectified (aligned) with the 2 other ones to give out 12vdc


see typical "remote" wiring . tiller version would have a push button to
energize the solenoid on the yellow-red wire post

starter's usually have 1 or 2 wires one comes from the solenoid OUTPUT with B+ 12 volts...

the other post/wire if you have one would be the ground post wired to the engine frame common ground ....otherwise the starter is grounded via it's mounting bolts .

post a picture if possible.

Last edited:
S

skip44820

Petty Officer 2nd Class
Joined
Dec 13, 2020
Messages
174
yes that is the terminal block. if the wires are not put on correctly could that be a reason not to show spark? I have the started all torn apart now.

R

racerone

Supreme Mariner
Joined
Dec 28, 2013
Messages
38,525
The rectifier has to do with charging the battery.-----But check all wiring.----Wiring can be confusing to many people.

C

Crosbyman

Vice Admiral
Joined
Nov 5, 2006
Messages
5,688
skip44820 said:
yes that is the terminal block. if the wires are not put on correctly could that be a reason not to show spark? I have the started all torn apart now.
Click to expand...
just join up individual FW yellows to rectifier yellows as per drawing the RED is the DC sent back to the solenoid post in the drawing.

has explained by Racerone...this is separate from ignition-starting issues .

if you have key start? make certain key is ON otherwise yellow-black will kill the ignition. beyond that ...could be several things...bad key chaffed wires etc... see if poking wiggling wires does anything when starting...after you get the starter back on.

if not familiar with all this stuff maybe shop time may be needed.

S

skip44820

Petty Officer 2nd Class
Joined
Dec 13, 2020
Messages
174
Crosbyman said:
just join up individual FW yellows to rectifier yellows as per drawing the RED is the DC sent back to the solenoid post in the drawing.

has explained by Racerone...this is separate from ignition-starting issues .

if you have key start? make certain key is ON otherwise yellow-black will kill the ignition. beyond that ...could be several things...bad key chaffed wires etc... see if poking wiggling wires does anything when starting...after you get the starter back on.

if not familiar with all this stuff maybe shop time may be needed.
Click to expand...
Shop time is $125 per hour. I never made that kind of money and don't plan on paying it at 77 years old. But I need your help here. Patience with me, I'm old

C

Crosbyman

Vice Admiral
Joined
Nov 5, 2006
Messages
5,688
skip44820 said:
Shop time is $125 per hour. I never made that kind of money and don't plan on paying it at 77 years old. But I need your help here. Patience with me, I'm old
Click to expand...
no sweat hopefully yu can get it going..great hobby. I am old to not far behind.

post your engine model # so we all know what we are dealing with.

btw did you ever check compression because all the time and money on parts won't be worth it if the innards are shot. Best to do thestarter and reinstall . maybe some utubes can help you

here is one of many


" patience brings joy"

Last edited:
R

racerone

Supreme Mariner
Joined
Dec 28, 2013
Messages
38,525
Your location?----Or visit the ---aomci----and go to a meet.-----You might find an old expert who will help you for a case of suds or a bottle of some good stuff.

R

racerone

Supreme Mariner
Joined
Dec 28, 2013
Messages
38,525
I did not see this presenter do a 10 second ohm check on the armature.----Or install new $6.00 brushes.-----Makes me wonder !!

S

saltchuckmatt

Commander
Joined
Jul 19, 2019
Messages
2,811
Crosbyman said:
no sweat hopefully yu can get it going..great hobby. I am old to not far behind.

post your engine model # so we all know what we are dealing with.

btw did you ever check compression because all the time and money on parts won't be worth it if the innards are shot. Best to do thestarter and reinstall . maybe some utubes can help you

here is one of many


" patience brings joy"
Click to expand...
This video is a little better in my humble opinion....shows how to make the brush holder while you assemble. Saves the cost of buying one plus the other guy didn't explain or aline it properly.

Cheers


R

racerone

Supreme Mariner
Joined
Dec 28, 2013
Messages
38,525
Really , using a piece of carboard ??----I have the " special " tool.------You can buy a premium tool online too.-----But get the wife to help.----2 knives to hold the brushes in place.----Easy as can be.

Last edited:
S

skip44820

Petty Officer 2nd Class
Joined
Dec 13, 2020
Messages
174
Im in Ohio Evinrude model # MJ35ELCTS I finally got spark this morning at 1:30. The old ones dont sleep much. Thought I had this bastard beat. Shot carb cleaner in carb, no fire. Wont fire, what now??? Compression 2 weeks ago when I started this 140 142
